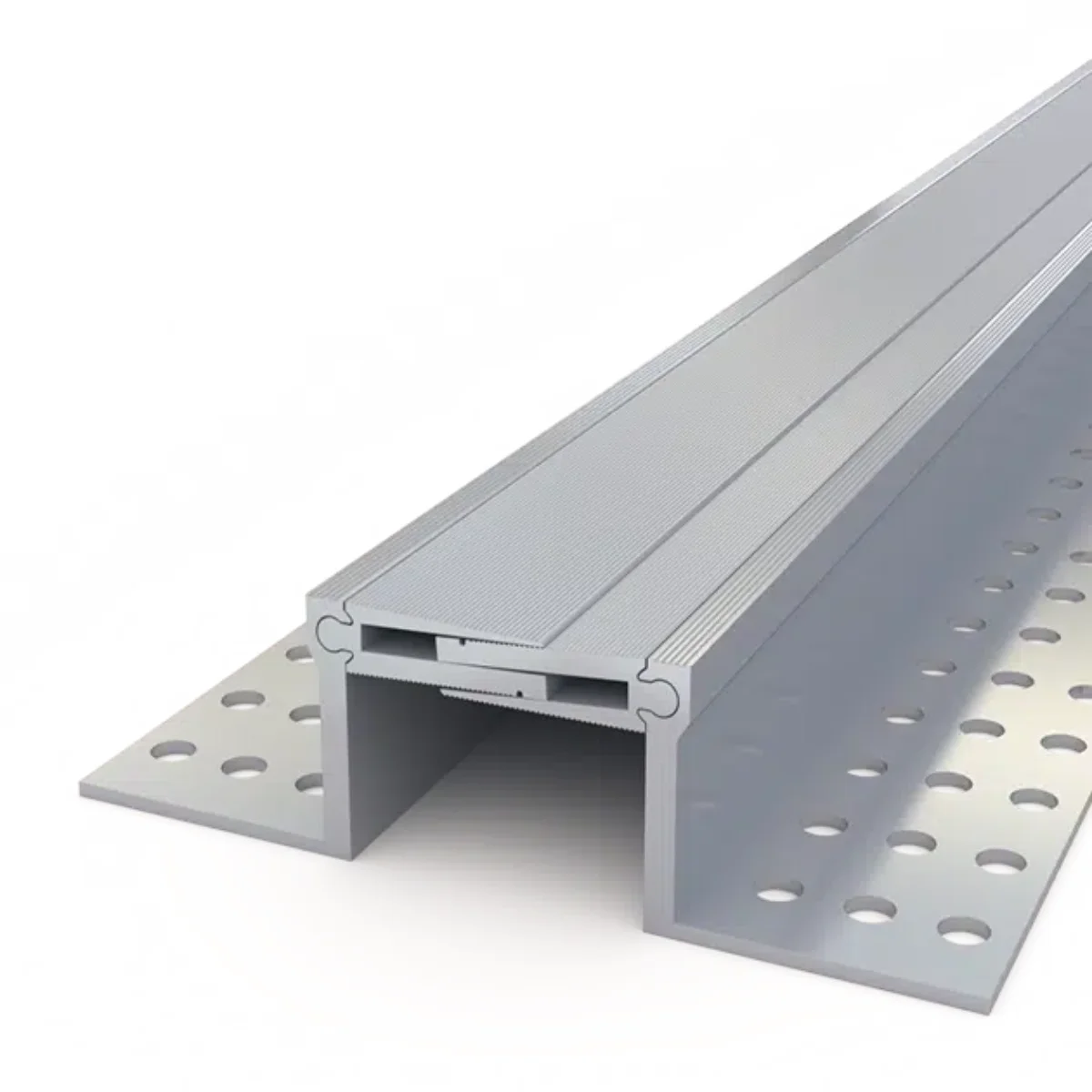

Expansion Joints JHR 6.12
All metal floor joints
All Metal Seismic Ground Expansion Joint
MATERIAL:Â Aluminium
COLOUR:Â Natural
MODEL:Â Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Special for heavy loads and heavy duty
- For opening joints up to 110 mm

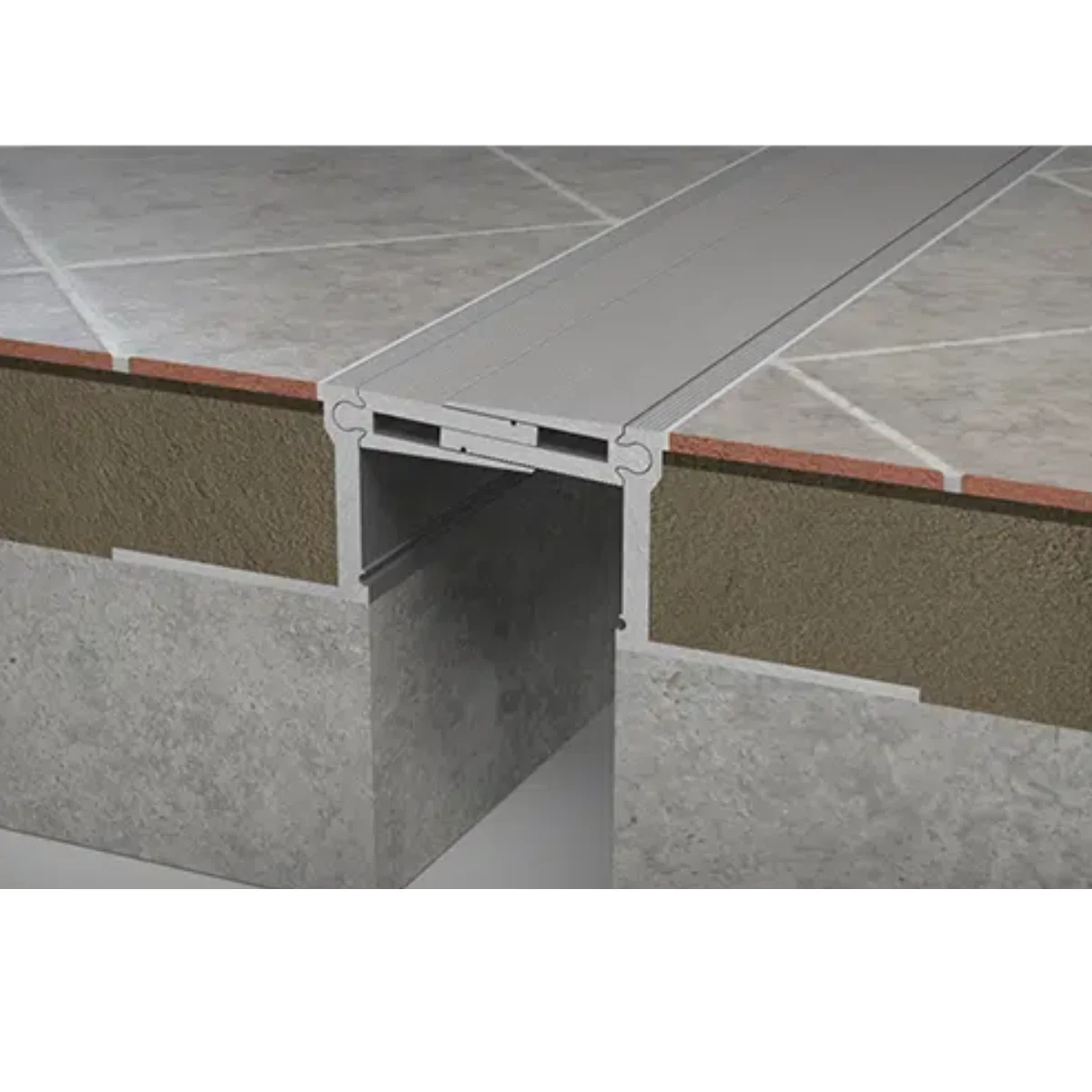

Seismic floor expansion joint for exterior and interior consisting of two aluminum angles and two central angles allowing expansion and contraction movements, as well as vertical and shear movements. Can be used for any type of finish: concrete, screed, tiles, etc.
