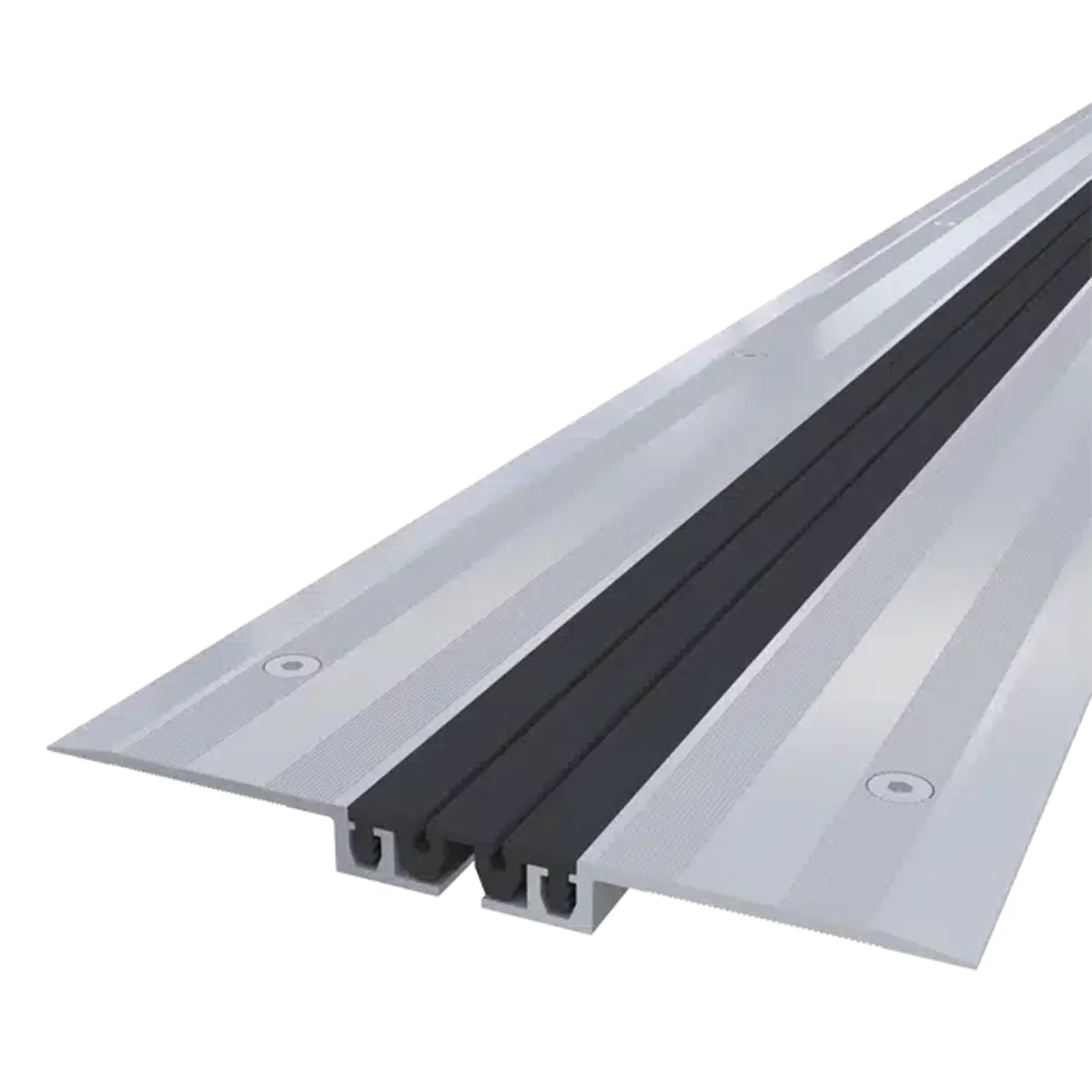

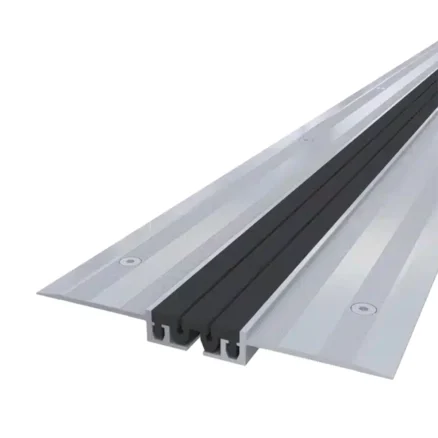

Expansion Joints JDH 5.26
Floor joints with insert
Floor expansion joint for installation on finished floor
MATERIAL:Â Aluminium
Nitrile
COLOUR:Â Black
Grey
RAL shades
MODEL:Â Flat and Angle
CHARACTERISTICS:
- Floor expansion joint for installation on finished floor
- For opening joints from 20 to 60 mm

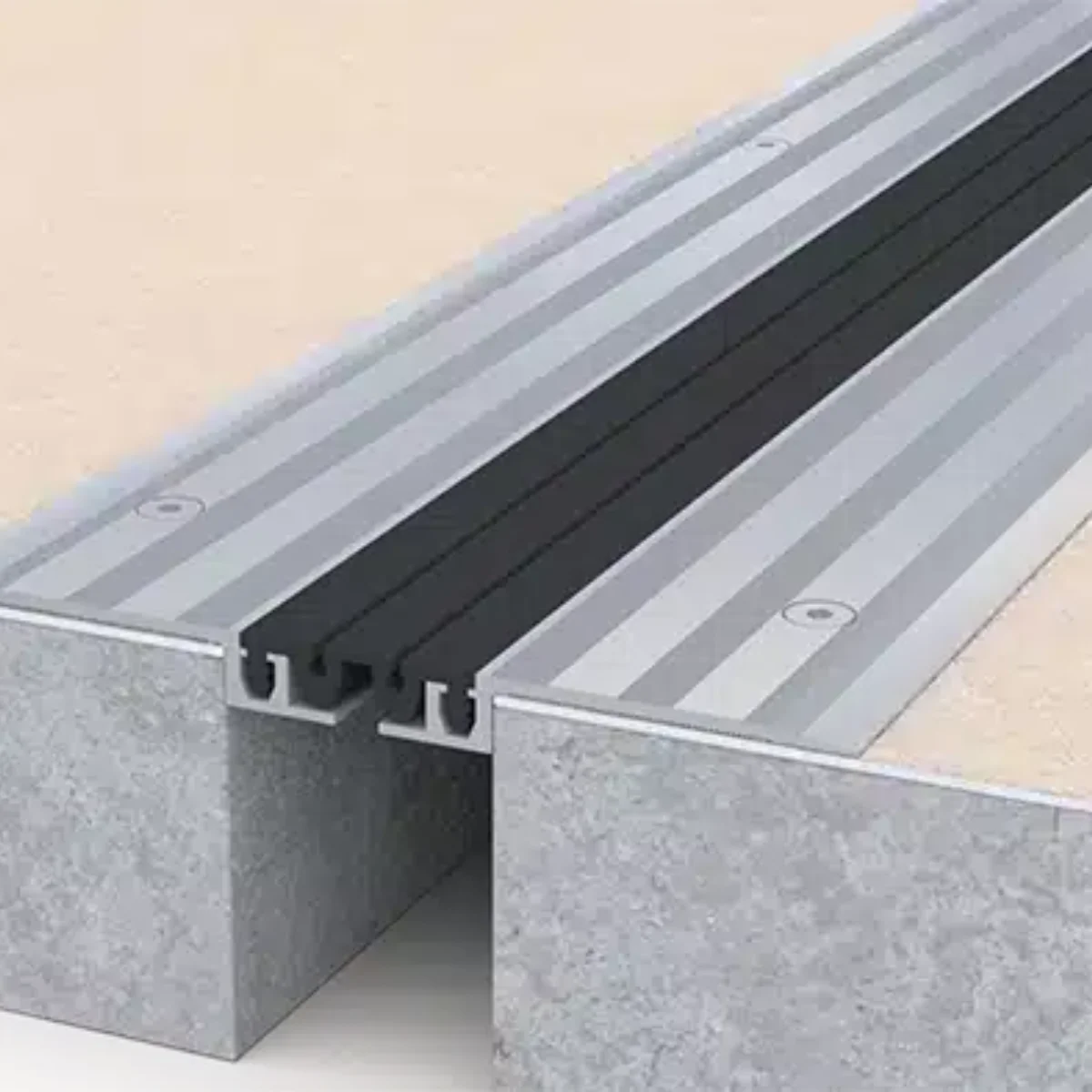

Built-in profile for interior or exterior floor expansion joints, specially adapted for installation on finished floors. Expansion joint consisting of reinforced angles drilled with milled aluminum and a flexible heat-weldable insert.
Category: Tile Trims & Expansion Joins
Description
Reviews (0)
Be the first to review “Expansion Joints JDH 5.26” Cancel reply
Shipping & Delivery
Related products
Expansion Joints JHR 5.12
Floor joints with insert
Heavy Duty Aluminum Floor Expansion Joint
MATERIAL:Â Aluminium
Nitrile
COLOUR:Â Black
Grey
RAL shades
MODEL:Â Flat and Angle
CHARACTERISTICS:
- Special wide-width floor expansion joint
- Special for heavy car traffic
- For opening joints from 80 to 300 mm
Floor expansion joint made of aluminium angles and a flexible black or grey insert to absorb expansion movements. Can be used for concrete, screed, tile expansion joints and up to 100 mm. Suitable for semi-heavy traffic, it will be suitable for the passage of tired-type forklifts and heavy traffic of light vehicles.
Expansion Joints JHR 5.10
Floor joints with insert
Brass Floor Expansion Joint
MATERIAL:Â Brass
Nitrile
COLOUR:Â Black
Grey
RAL shades
MODEL:Â Main course only
CHARACTERISTICS:
- Expansion joint with flexible insert
- Brass gasket for a luxury finish
Brass floor expansion joint composed of an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, marble, etc. For indoor or outdoor floor joints up to 30 mm. Suitable for pedestrian and non-intensive light vehicle traffic.
Expansion Joints JDH 5.02
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL:Â Aluminium
Nitrile
COLOUR:Â Black
Grey
RAL shades
MODEL:Â Flat and Angle
CHARACTERISTICS:
- Standard Floor Expansion Joint
- Smooth Insert Option
- For opening joints up to 60 mm
Standard floor expansion joint for exterior and interior made of pre-drilled aluminum angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc. Suitable for light traffic, it will also be suitable for the passage of light trolleys with tyres and non-intensive traffic of light vehicles.
Expansion Joints JDV 4.14
Special Seismic Vertical Expansion Joint for False Ceilings
Expansion joint for false ceilings
MATERIAL:Â Aluminium
Nitrile
COLOUR:Â Black
Grey
MODEL:Â Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Special suspended ceilings
- For opening joints from 30 to 100 mm
Expansion joint for "false ceiling" composed of aluminium angles, an interchangeable central insert to absorb large multidirectional movements.
Specially adapted for suspended ceilings.
For suspended ceiling joints or "false ceilings"Â up to 350 mm opening.
Expansion Joints JDV 4.06
Vertical expansion joint for walls, facades and ceilings
MATERIAL:Â Aluminium
Nitrile
COLOUR:Â Black
Grey
MODEL:Â Flat and Angle
CHARACTERISTICS:
- For opening joints up to 60 mm
- Vertical installation of façade, wall and ceiling
- Available from stock
The expansion joint for walls, facades and ceilings consists of two raw aluminium angles and a flexible nitrile insert. The side angles are covered with cellular foam that compensates for unevenness in the surfaces.
Expansion Joints Flexible Blanking Profile PSR
Flexible sealing profiles
MATERIAL:Â Nitrile
PVC
COLOUR:Â Black
Grey
RAL shades
MODEL:Â Main course only
CHARACTERISTICS:
- Cost-effective product, quick installation
- For non-circulatable horizontal and vertical joints
- For opening joints between 10 and 90 mm
Recessed flexible blanking profiles are ideal for the quick and economical construction of vertical joints, exterior or interior, or ceiling joints.
PSRs have a "cap" shaped upper part that provides coverage and hides any irregularities that the joint may have.
Expansion Joints Flexible Blanking Profile CP
Flexible sealing profiles
MATERIAL:Â Vulcanized thermoplastic
COLOUR:Â Black
MODEL:Â Dish only
CHARACTERISTICS:
- Cost-effective product, quick installation
- Hydrocarbon and UV resistant profiles
- For opening joints between 25 and 100 mm
Flexible vulcanised thermoplastic shutter profiles designed to be recessed into the floor and fixed with a special adhesive. The internal dimples support up to 50% of multidirectional movement, while maintaining enough lift to absorb traffic. Hydrocarbon and UV resistant profiles, which must be installed at least 5 mm below the running surface.
Expansion Joints GASKET COVER CJE-PF
Extruded, drilled and milled joint covers
MATERIAL:Â Aluminium
COLOUR:Â PAL Shades
MODEL:Â Flat and Angle
CHARACTERISTICS:
- Economical joint cover, easy and quick installation
- For new work and renovation
- For opening joints up to 250 mm
CJE-PF joint covers are designed to protect and cover floor joints but can also be used on facades, walls and ceilings. Aesthetic, decorative and economical, they can be used indoors or outdoors. Pre-drilled and milled, they are easy to install, and are used in new work and renovation for joints from 10 to 250 mm of opening.
